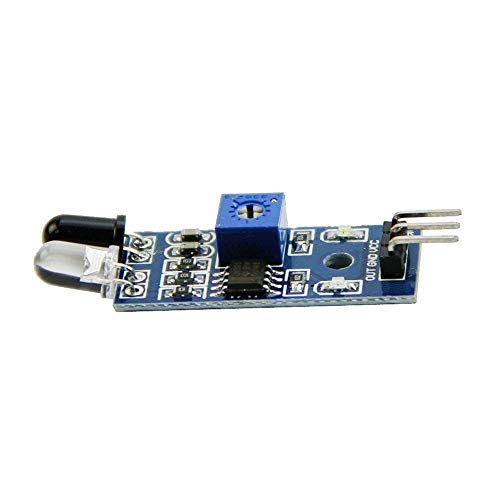

REES52 10PCS IR Infrared Obstacle Avoidance Sensor Module for Arduino Smart Car Robot

Amazon.in Price: 699.00 (as of 18/09/2020 15:03 PST- Details) & FREE Shipping.

IR Infrared Obstacle Avoidance Sensor Module can be widely used in robot obstacle avoidance, obstacle avoidance car, line count, and black and white line tracking and so on

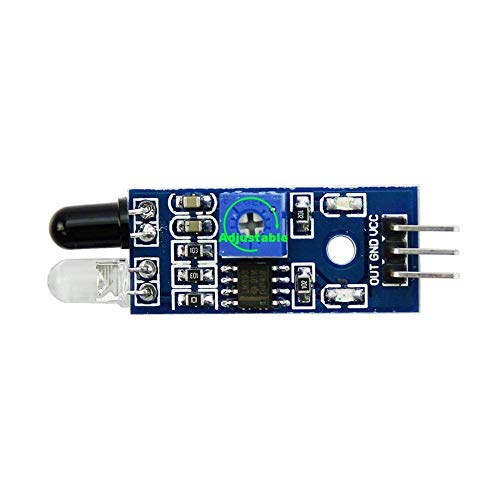

The module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted
The output port OUT sensor module can be directly connected to the microcontroller IO port, you can directly drive a 5V relay

Category:

Description

Specification
The output port OUT sensor module can be directly connected to the microcontroller IO port , you can directly drive a 5V relay ;
the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted
Can be used for 3-5V DC power supply modules
When the power is turned on, the red power indicator light
Using the comparator LM393
Interface :
1. VCC: External 3.3V-5V voltage (can be directly connected to 5v MCU and 3.3v MCU)
2. GND: GND External
3. OUT: Small board digital output interfaces (0 and 1)
Connection : VCC-VCC; GND-GND; OUT-IO

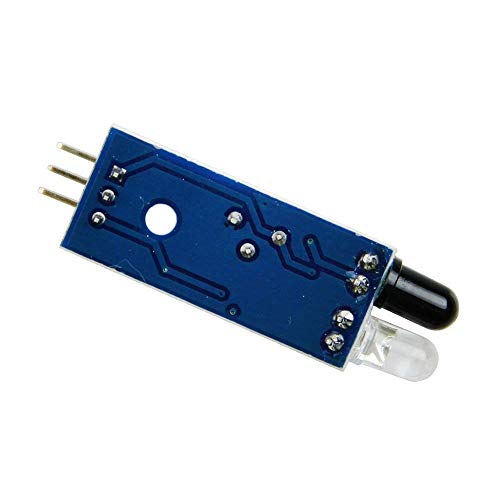

With the screw holes of 3mm , easy fixed installation
Board Size : 3.1CM * 1.5CM / 1.22 * 0.59″

Package includes:

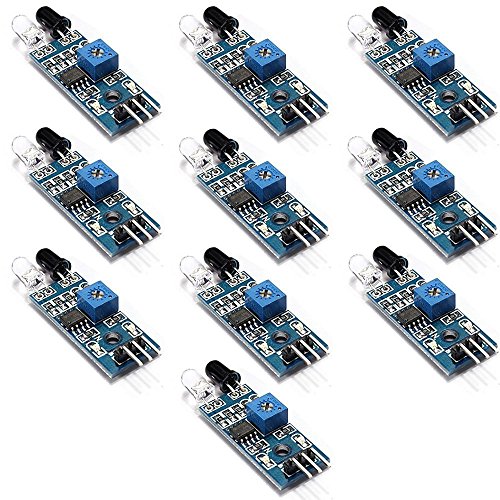

10 x Infrared Obstacle Avoidance Module

IR Infrared Obstacle Avoidance Sensor Module can be widely used in robot obstacle avoidance, obstacle avoidance car, line count, and black and white line tracking and so on
The module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted
The output port OUT sensor module can be directly connected to the microcontroller IO port, you can directly drive a 5V relay

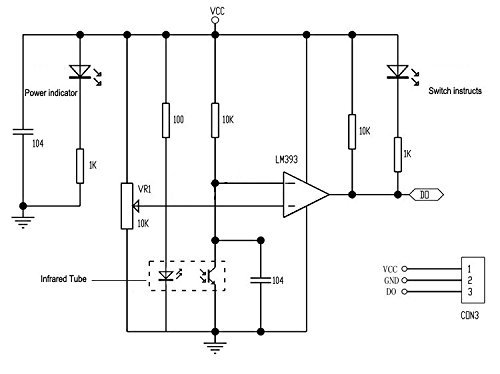

It has a pair of infrared transmitting and receiving tube, tube infrared emit a certain frequency, when detecting direction meet with obstacles (reflecting surface), reflected infrared receiving tube, after the comparator circuit processing, green indicator will light up, at the same time signal output interface to output digital signal (a low level signal)
Can be used for 3-5V DC power supply modules. It has red power indicator
